IKO Armourvalley & IKO Base

IKO Armourvalley & IKO Base - Armourvalley Black (01)
Armourvalley Black (01)
Colour

IKO Armourvalley & IKO Base

Armourvalley is used in roof valleys and is a high quality APP modified roll finished with ceramic-coated granules that perfectly match the colours of IKO roof shingles.

IKO Base is an underlay for IKO Armourvalley, when used on low slope roof areas (<15°) this roll must be applied with a good mechanical fastening (nail or screws every 20 cm in all directions).

Product data

  Armourvalley IKO Base
Weight/roll 38,8 kg 25,9 kg
Thickness 4 mm 2,1 mm
Dimensions (l x w) 7,5 x 1 m 12 x 1 m
Surface 7,5 m² 12 m²
Rolls/pallet 25 24
Tensile strength length* (EN 12311-1) 650 N/50 mm 550 N/50 mm
Tensile strength width* (EN 12311-1) 400 N/50 mm 400 N/50 mm
Elongation length* (EN 12311-1) 20% 20%
Elongation width* (EN 12311-1) 20% 20%
Heat resistance lower surface (EN 1110) 120 °C 120 °C
Cold flex lower surface (EN 1109) -8 °C -15 °C

* Registred average values

Armourvalley is used in roof valleys and is a high quality APP modified roll finished with ceramic-coated granules that perfectly match the colours of IKO roof shingles.

The special features make it ideal for the specific needs of roof valleys: strength, flexibility and aesthetics.

> It can also be used for low slope roof areas adjacent to shingles. Check out how, with this interesting blog: Extended flat and sloped roof: how to solve it?



IKO Base is an underlay for IKO Armourvalley, when used on low slope roof areas (<15°) this roll must be applied with a good mechanical fastening (nail or screws every 20 cm in all directions).

Afterwards the IKO Armourvalley must be fully torched on it. Check out how, with this interesting blog: Extended flat and sloped roof: how to solve it?

Armourvalley Tile Red (10)
Armourvalley Tile Red (10)
Armourvalley application
Armourvalley installation
Armourvalley application
Armourvalley installation
Armourvalley application
Armourvalley installation

Application instructions

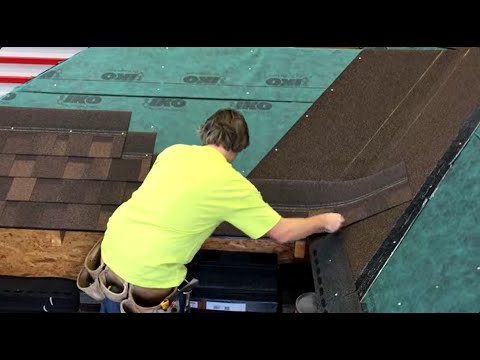

Installing IKO Base & Armourvalley

Open valley method

Application film

Californian valley method - application film



This method is the method to use with Cambridge Xtreme 9,5° roof shingles
